Mini-MPCNC Build Log – Printed Parts Identification
Page under constructions, pictures and video to be added – updated 10/07/2022
Printing and identifying the parts
List of parts with pictures of their locations on the Printer Frame – Left/Right from behind printer, facing printer
Printing times – For MP Mini-Delta at 30% fill
Printing times – For MP Maker Pro Mk.1 at 30% fill
Number Description thumbnail (click to enlarge)

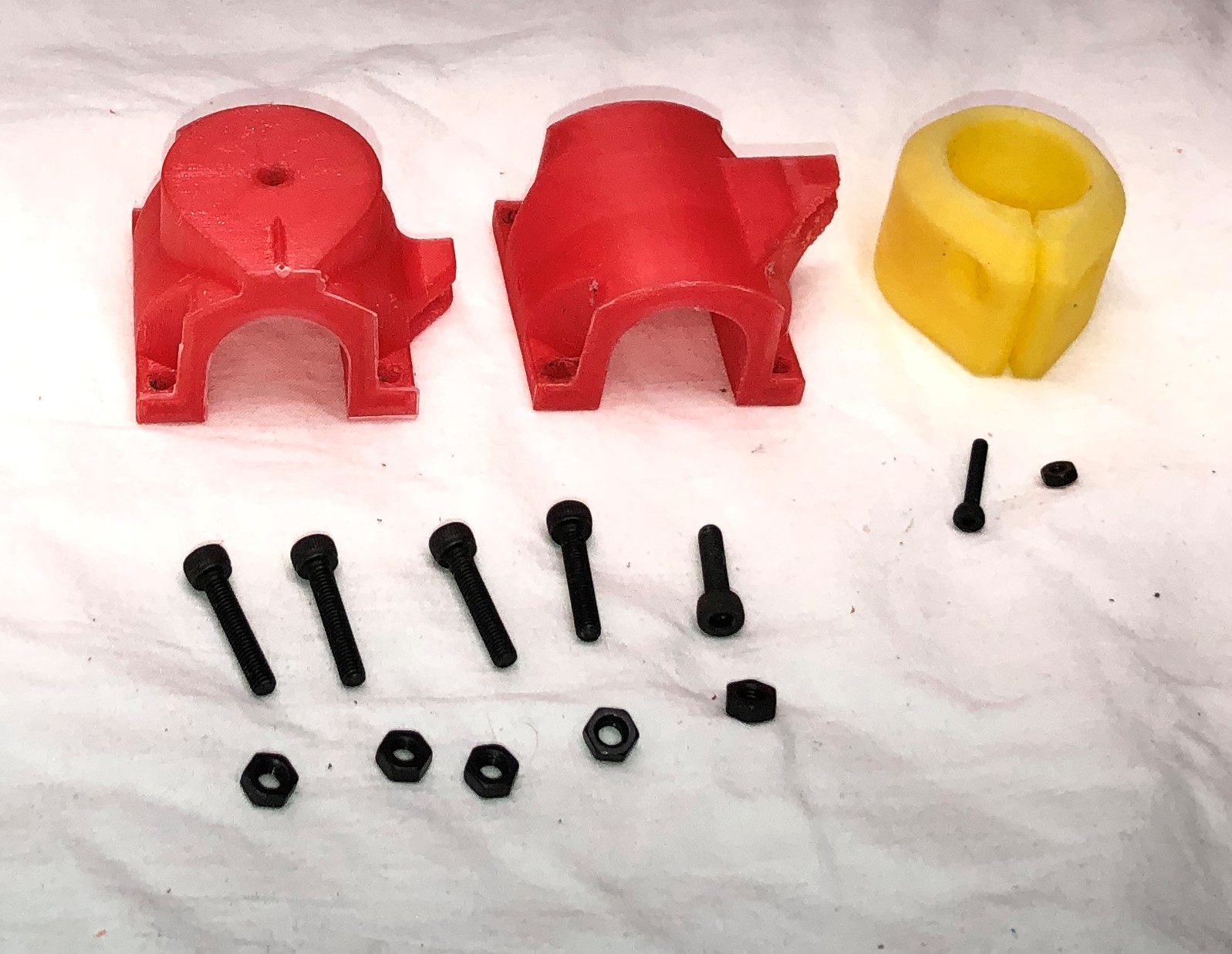

Bottom Corner – 1 hour
2 – BottomCornerC.stl
5 – #6-32×3/4 machine screw with Nut
Bottom Corner Mirror – 1 hour x
2 – BottomMCornerC.stl
5 – #6-32×3/4 machine screw with Nut

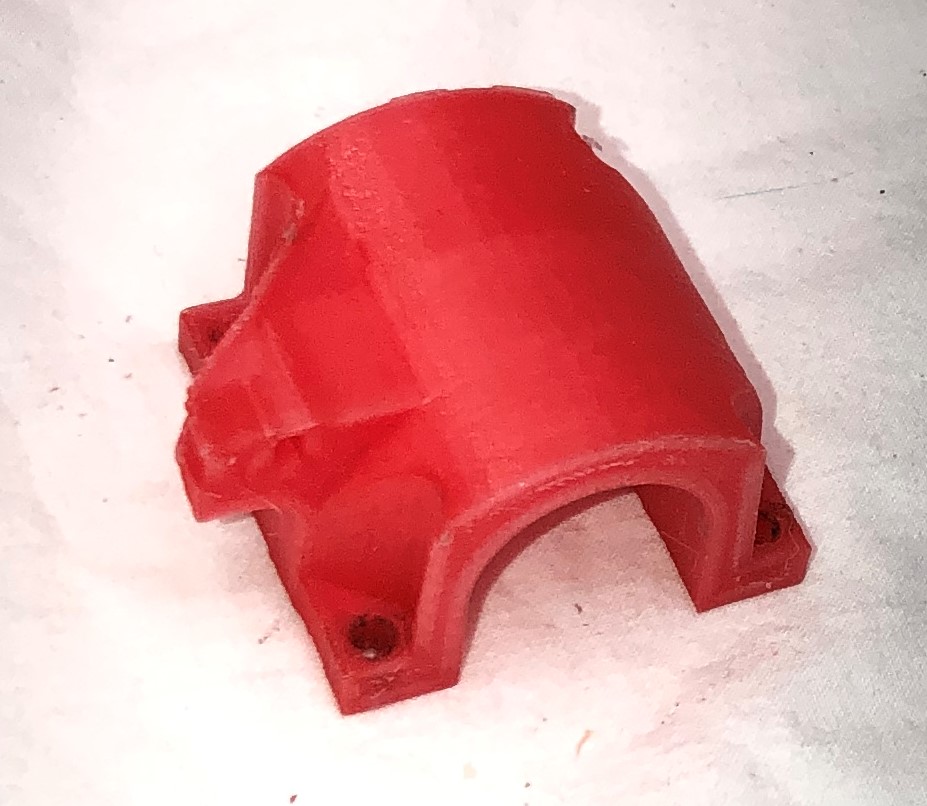

Top Corner – – 1 hour
2 – TopCornerC.stl
Top Corner Mirror – 1 hour
2 – TopMCornerC.stl
Foot – 1 hour
4 – MPCNC_C-Foot_2018.stl
4 – #6-32×3/4 machine screw with Nut
Motor shaft Adapter – 1 hour
1 – Pineapple5_6mm.stl
Spacer Corner – 1 hour
4 – Spacer_Corner_C_Burly.stl
Lock Corner – 1 hour
2 – LockM_CornerC.stl
2 – #6-32×3/4 machine screw with Nut
Lock Corner – 1 hour
2 – Lock_CornerC.stl
2 – #6-32×3/4 machine screw with Nut
C Roller – 1 hour
1 – C_Roller_080.stl
C_Spacer_w_Bearing_080 – 1 hour
1 – C_Spacer_w_Bearing_080.stl
C-Lower – 8 Hours
1 – C-Lower.stl
C-NutLock_13mm_080 – 8 Hours
1 – C-NutLock_13mm_080.stl
C-NutTrap- 1 hour
1 – C-NutTrap.stl
C-NutTrap_080 – 1 hour
1 – C-NutTrap_080.stl
C-RollerMount_80- 1 hour
1 – C-RollerMount_80.stl
C-Spacer_080- 1 hour
1 – C-Spacer_080.stl
C-ToolMount_080.- 1 hour
1 – C-ToolMount_080.stl
C-XY_080- 1 hour
1 – C-XY_080.stl
C-XYZ_080- 1 hour
1 – C-XYZ_080.stl
C-Z-Lower_080- 1 hour
1 – C-Z-Lower_080.stl
C-Z-Motor_080V2- 1 hour
1 – C-Z-Motor_080V2.stl
nut_lock- 1 hour
1 – nut_lock.stl
Roller_Plate_080- Top – 1 hour
1 – Roller_Plate_080.stl
