Wood Carving Chisel Rack for Palm Chisels

Wood Carving for the Rest of US

Wood Carving Chisel Rack for Palm Chisels

Return to Wood Carving for Rest of Us


I need a way to organize my chisels so I could find the right chisel, and I need a way to protect my chisels sharp edges from getting dull and from accidently cutting me while I was looking for the right chisel

It seems logical that I would need multiple chisel racks, one for short chisels, one for long chisels and one for knives

The first chisel rack would be for relatively shorter palm chisels, and would suspend the chisels in the air so they would not touch the bottom of the chisel rack to help prevent the cutting edge

My palm chisels have a relatively wide handle, so I placed the holes 1 1/4 inches apart to give me enough room to grab the chisels easily

The size of the overall rack was determined by cutting a piece of pallet wood in 1/2

Wood Carving Chisel Rack for Palm Chisels
Wood Carving Chisel Rack for Palm Chisels

What materials/tools are required?

Recycled Pallet Wood – Actually, Any Wood will work OK

Glue – Yellow Carpenters Glue Works Well

0/16 Spade Drill Bit – A Drill bit 1/16 bigger than the Chisel Handle

Drill Press – Not Required, but helps alot

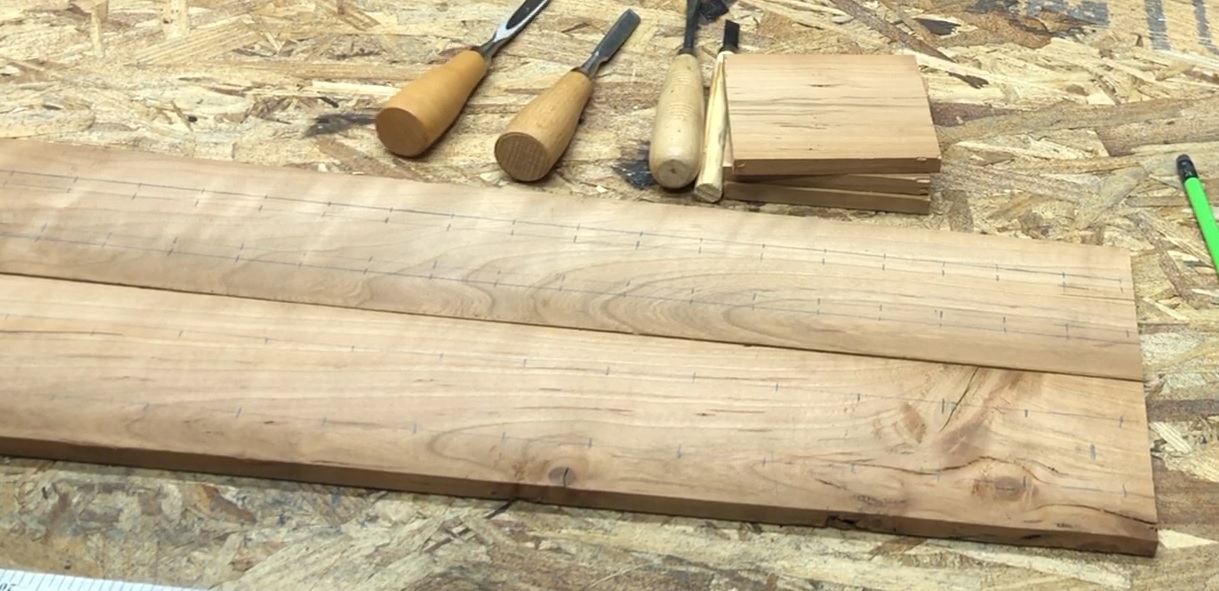

I started by marking the top board with a series of holes 1 1/14 inches apart, 3/4 inch from the side the board

Rack Top Marked for Drilling
Rack Top Marked for Drilling

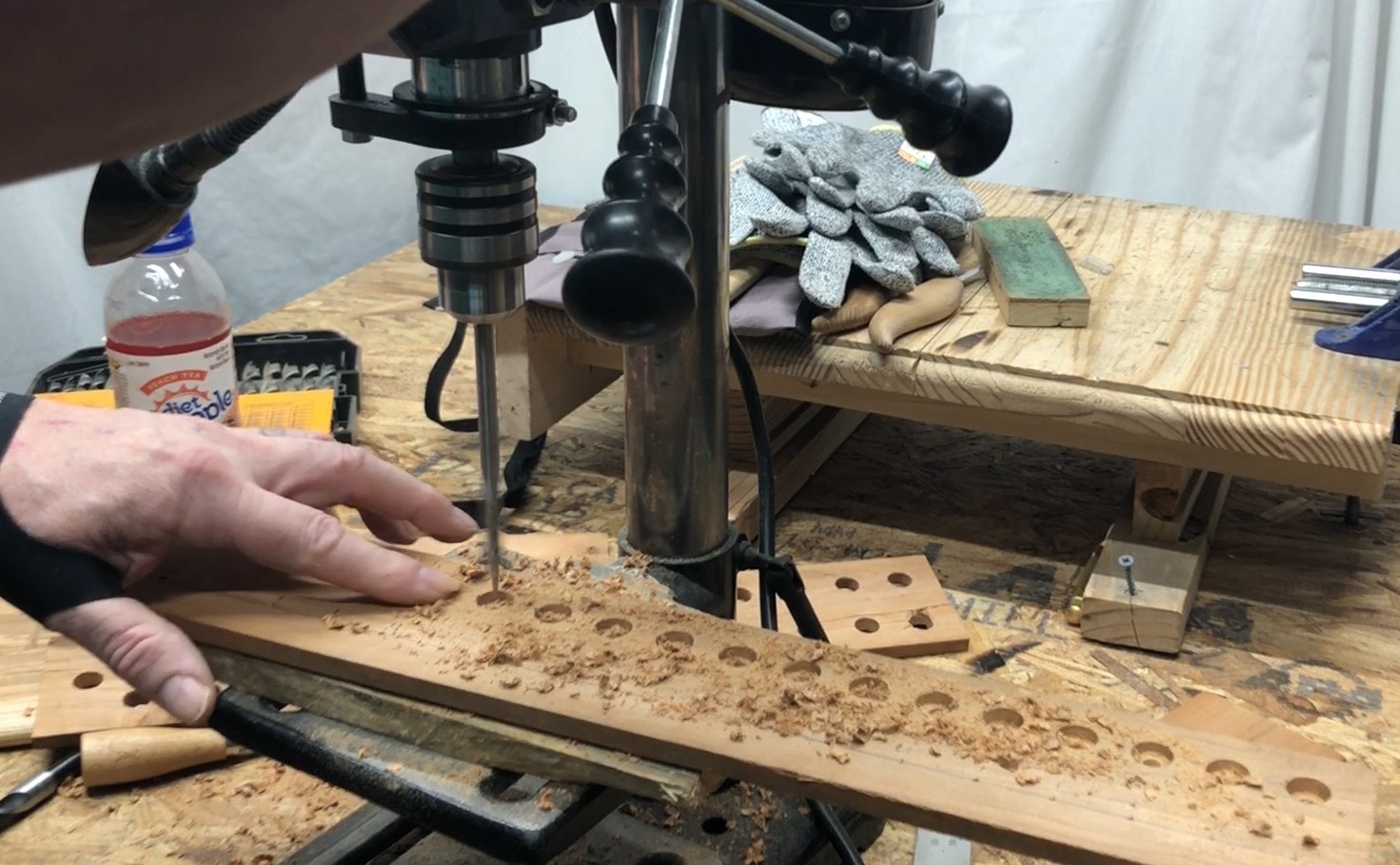

I used Harbor Freight’s Mini Drill Press to Drill all the holes, 1/2 way thru from 1 side and finishing on the other side, to prevent tear out

Drilling Holes
Drilling Holes

the Prep work is done, After a little sanding, the chisel rack was ready for glue-up

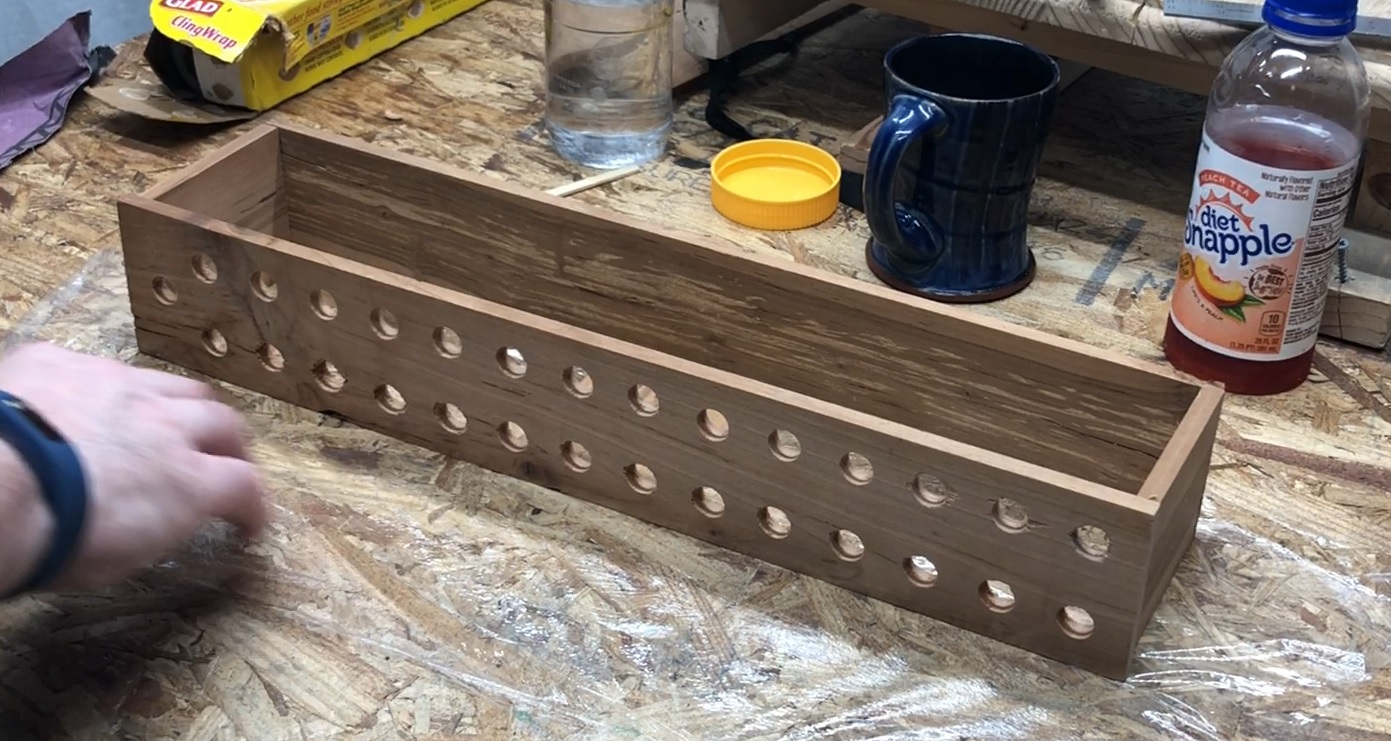

Ready for Glue Up
Ready for Glue Up

I allowed the glue to dry and the rack was ready to use!

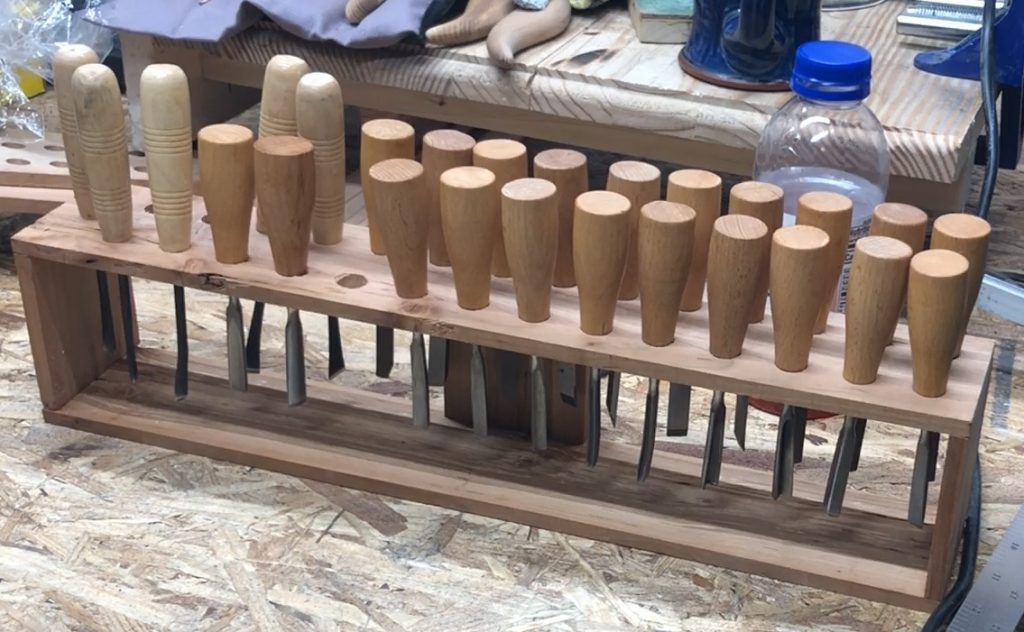

Wood Carving Chisel Rack for Palm Chisels
Wood Carving Chisel Rack for Palm Chisels

I was very happy with the finished chisel rack, the chisels did not touch the bottom and I had enough space for all my palm chisels with room for a few extra

Wood Carving Chisel Rack for Palm Chisels
