Zenith MS-125 Integrated Stereo
Zenith MS-125 Integrated Stereo

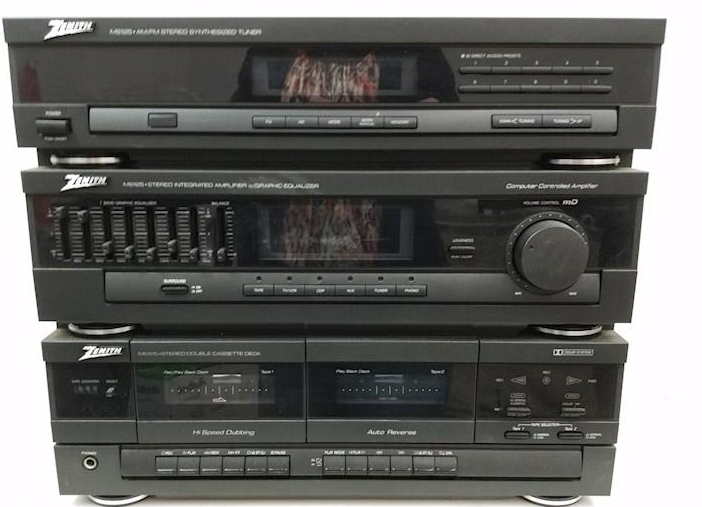

I ended up owning this Zenith MS-125 Integrate Stereo with Tuner, Graphic Equilizer and Dual Cassette Tape Deck – Dated 1991

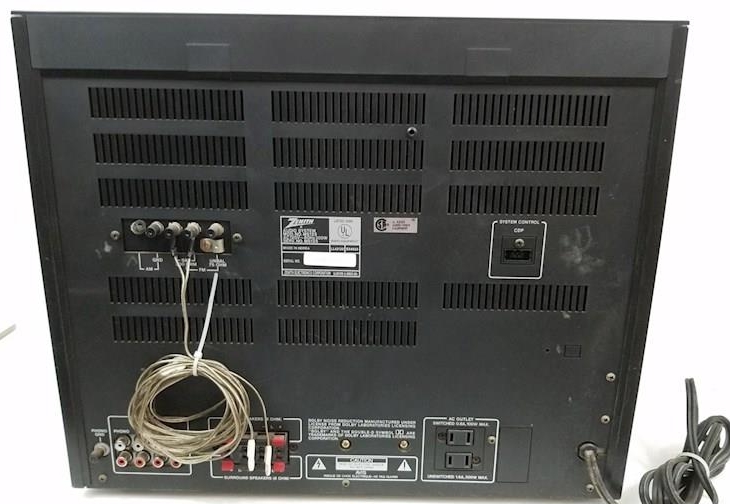

The system is a single unit, although the front panel is made to look like seperate components in a stack – it has an input in the back for a record playing unit, but one is not included

It did not fully work, the radio could tune and play, but no frequency display – so I ordered the service manual – very hard to find and a little expensive – so I decided to scan it and make it available online

I spent a little time checking out the system, It appears the LCD driver chip is not working – the chips are PLLC, and not easily replaceable – not really a modular design, there is one main board right behind the front panel that controls all of the individual units on the front panel

Zenith MS-125 Integrated Stereo
Zenith MS-125 Integrated Stereo

This is the ony MS-125 I’ve seen, but if I did find another MS-125 for the sysem board, I’d be better off using the 2nd system and junking this one, the main system board is the heart of the system

The unit uses very large scale integrated chips – and lots of special purpose chips – quite a change for me from working on tube radios and simple QRP radios

The system has a great sound, even into cheap speakers – I’m trying to find allegro speakers to use with the system

Very little information is found online about this system in terms of specifications and what speakers actually came with the system

I’ll be updating this page as I find new information

I have found Zenith Allegro 1000 and Allegro 2000 Speakers sets that I use with this system and another Zenith Stereo, I will post more information on a dedicated page for each speaker set

I found a set of Zenith Allegro 3000 Speakers at a reasonable price, but the shipping for prohibitively expensive so I’m still searching for a reasonable priced set

Zenith MS-125 Integrated Stereo
Zenith MS-125 Integrated Stereo

Zenith Model MS-125 Service Manual – 1991 www.snapwhole.com

Return to Radio Manuals and Schematics Page


Loading

6 Responses

  1. I found this exact model of stereo system im my new houses garage. do you think i could get it to work with my phone if i get a rca to aux cable then use a lightning to aux adapter? just wonderingp

    1. Yes it will work with your phone, I use it regularly with my phone using an RCA to 3.5mm adapter, and a lightning to 3.5mm cable – Let me know if you get it working

      1. i got a rca to aux chord and im now using it with spotify on my computer. i got 2 Technics SB-A33 Speakers for it and it sounds beautiful!

        1. Glad you got it working, I have a ton of audio equipment and happened to have the right cable
          that is a nice system, I hooked mine up to zenith allegro 2K speakers, they worked good
